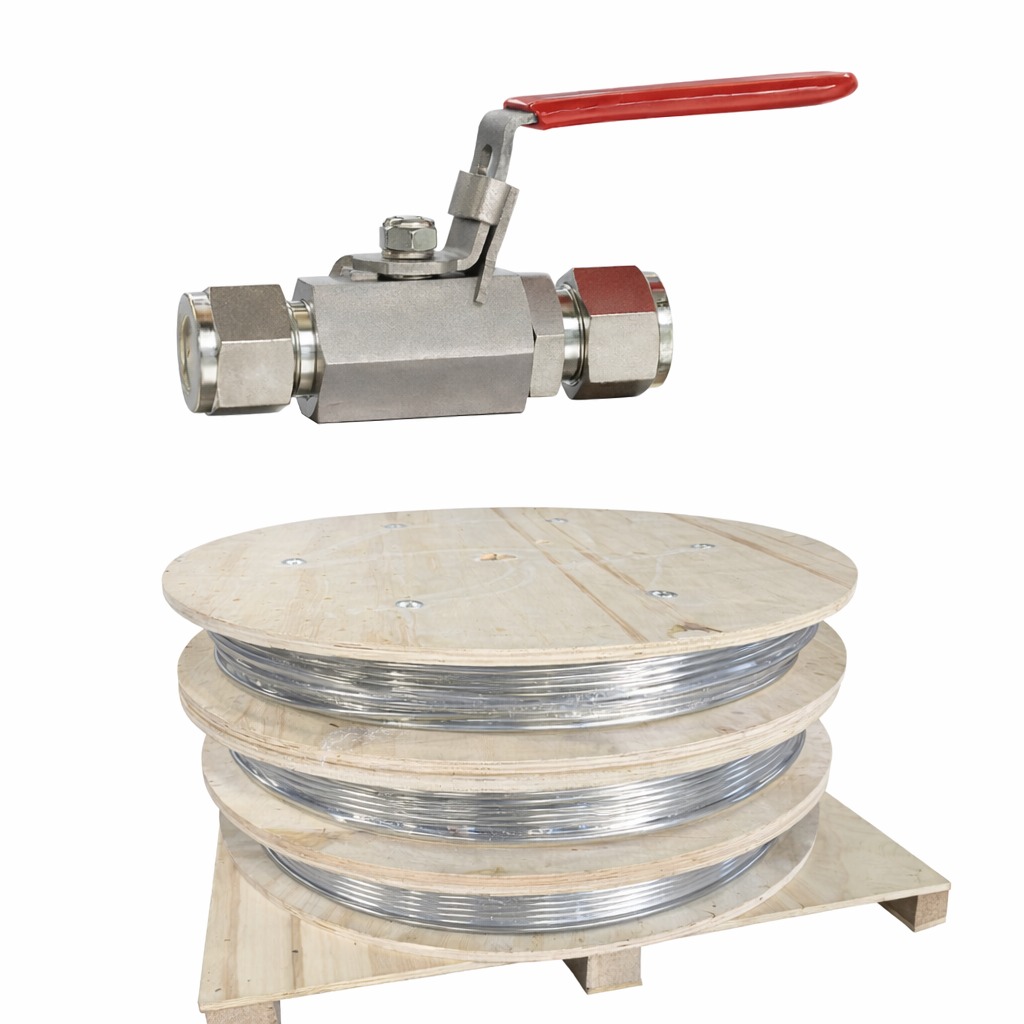

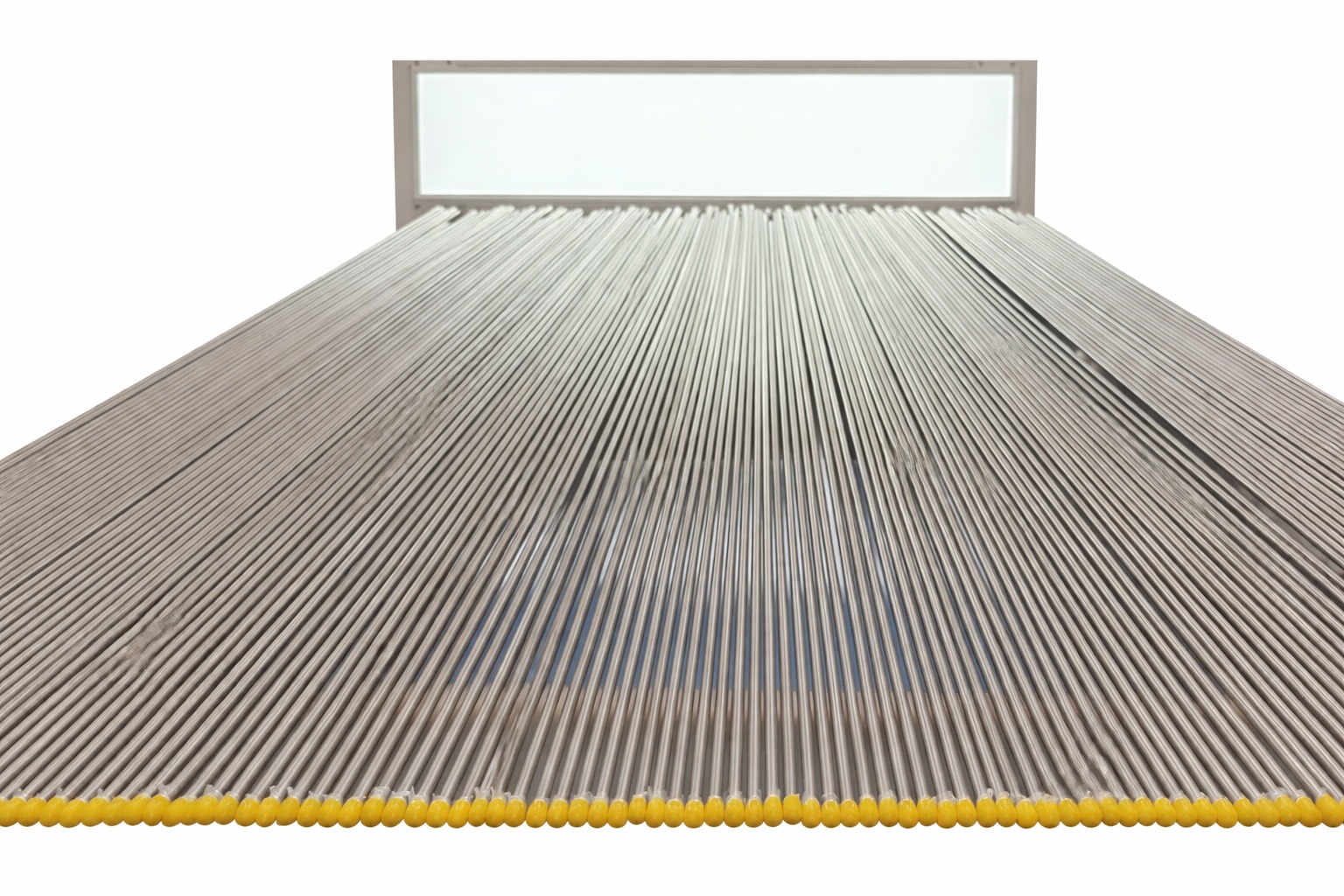

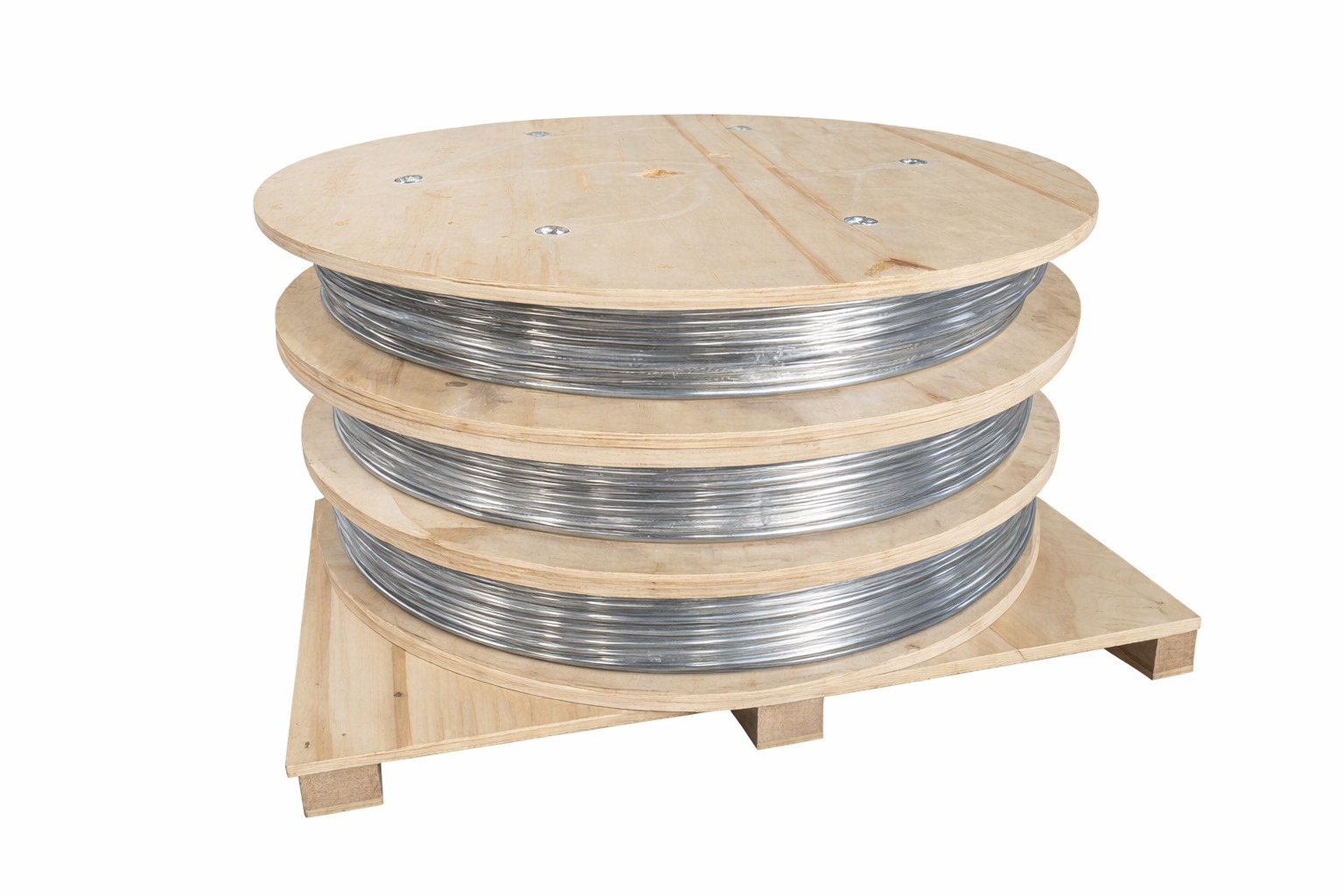

Straight & coil tubing (1/4", 3/8", 1/2")
Precision tubing designed for hydraulic and instrumentation systems.
High-Pressure Rated
Engineered to withstand pressures from 3,000 to 10,000 PSI for demanding hydraulic and instrumentation applications.
Precision Engineering
Manufactured to tight tolerances for reliable performance in critical hydraulic and instrumentation systems.
Designed for Wellhead Control Panels
Specifically engineered for the demanding requirements of wellhead control systems and oil & gas facilities.
Configurations & Options
Contact our technical team for custom lengths, pressure ratings, and material specifications.
Detailed Technical Specifications
| Specification | 1/4" Tubing | 3/8" Tubing | 1/2" Tubing |
|---|---|---|---|
| Outside Diameter (OD) | 0.250" (6.35 mm) | 0.375" (9.53 mm) | 0.500" (12.70 mm) |
| Wall Thickness | 0.035" - 0.065" | 0.049" - 0.083" | 0.065" - 0.109" |
| Pressure Ratings |
3,000 PSI 5,000 PSI 6,000 PSI 10,000 PSI |
3,000 PSI 5,000 PSI 6,000 PSI |
3,000 PSI 5,000 PSI |
| Material Options | 316 Stainless Steel, Carbon Steel, Alloy Steel | ||
| Temperature Range | -65°F to +450°F (-54°C to +232°C) | ||
| Straight Lengths | 1' to 20' standard | 1' to 20' standard | 1' to 20' standard |
| Coil Lengths | Up to 500' continuous | Up to 300' continuous | Up to 200' continuous |
| Surface Finish | Bright annealed, Electropolished, Pickled & passivated | ||
| Tolerances | ±0.003" OD, ±10% wall | ±0.004" OD, ±10% wall | ±0.005" OD, ±10% wall |
| Burst Pressure | 4:1 safety factor | 4:1 safety factor | 4:1 safety factor |
| Fluid Compatibility | Hydraulic oil, Water, Air, Natural gas, Instrumentation gases | ||
316 Stainless Steel: ASTM A269, ASTM A213
Carbon Steel: ASTM A179, ASTM A214
Surface finishes available per customer requirements
ISO 9001:2015 certified manufacturing
Traceability per customer requirements
Certifications: Mill Test Reports, Material Certifications
Key Features & Benefits
Multiple Sizes: 1/4", 3/8", 1/2"
Available in standard industrial sizes to meet various flow requirements and system designs.
Straight & Coil Options
Choose between pre-cut straight lengths for easy installation or continuous coils for flexible routing.
High-Pressure Rated
Engineered for pressures from 3,000 to 10,000 PSI for demanding hydraulic and instrumentation applications.
Precision Engineering
Manufactured to tight tolerances for reliable performance in critical systems.
Industrial-Grade Materials
Constructed from 316 stainless steel and other high-quality materials for durability and corrosion resistance.
Wellhead Application Designed
Specifically engineered for the demanding requirements of wellhead control systems and oil & gas facilities.
Industrial Applications
High-pressure tubing is essential for reliable fluid transfer in critical industrial systems where pressure integrity and durability are paramount.
Wellhead Control Panels
Hydraulic and instrumentation tubing for control systems managing wellhead operations and safety functions.
Hydraulic Power Units
High-pressure hydraulic lines for power units operating valves, actuators, and other hydraulic equipment.
Instrumentation Systems
Precision tubing for pressure gauges, transmitters, and other instrumentation in process control systems.
Pneumatic Control Systems
Air supply and control lines for pneumatic valve actuators and control systems.
Process Industry
Fluid transfer lines for chemical, petrochemical, and refining applications requiring high-pressure capability.
Safety Systems
Emergency shutdown and fire suppression system tubing requiring reliable high-pressure performance.
Technical Documentation
Download detailed specifications, pressure ratings, and selection guides.
Product Data Sheet
Complete technical specifications for all tubing sizes and pressure ratings
Pressure Rating Guide
Detailed pressure ratings for different sizes, materials, and wall thicknesses
Installation Guide
Proper handling, cutting, bending, and installation procedures
Technical Specifications
Material specifications, tolerances, and quality standards
