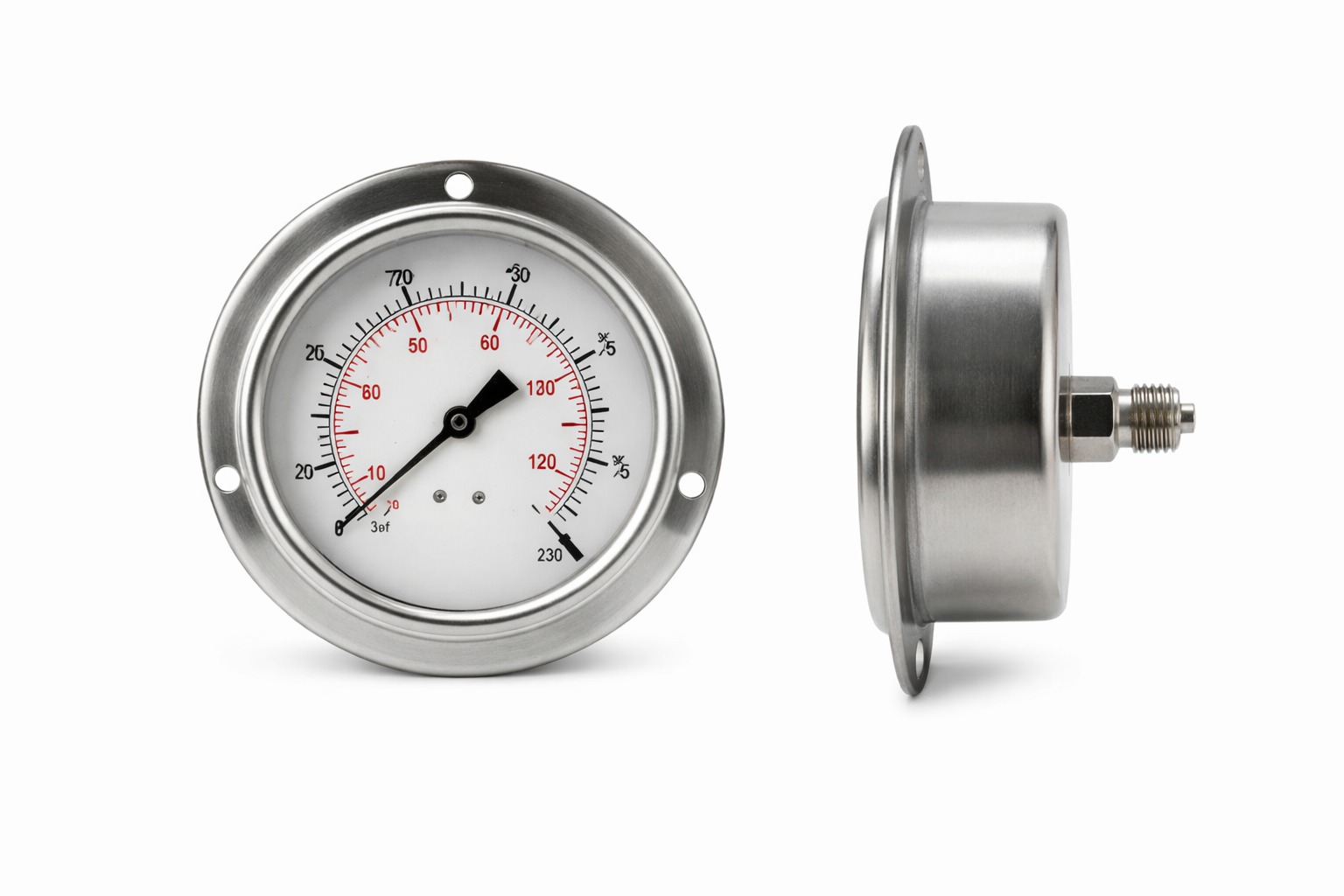

Pressure Gauges (Panel & Direct Mount)
Pressure gauges designed for continuous and accurate pressure indication in hydraulic and wellhead control systems.
- Front panel installation
- Easy reading from operator position
- Multiple process connections
- Standard DIN sizes
- Direct process connection
- Reduced installation space
- Eliminates impulse lines
- Ideal for field installations
Available Configurations
Standards & Compliance
Contact our engineering team for detailed technical data sheets, pricing, or custom configuration support.
Detailed Technical Specifications
| Parameter | Specification | Unit/Notes |
|---|---|---|
| Pressure Range | 0 ... 10,000 | PSI (various ranges available) |
| Accuracy Class | Class 1.6 / 2.5 | EN 837-1 compliant |
| Dial Sizes | 63, 80, 100, 160 | mm diameter |
| Case Material | SS 304/316, ABS plastic | Corrosion resistant options |
| Window Material | Safety glass, polycarbonate | Anti-glare options available |
| Process Connection | 1/4" to 1/2" NPT, G1/4 to G1/2 | Bottom/back/lower connections |
| Mounting Options | Panel mount, direct mount | With/without flange |
| Filling Options | Dry, glycerin, silicone oil | For vibration resistance |
| Media Temperature | -20°C to +80°C | For glycerin-filled versions |
| Ambient Temperature | -20°C to +60°C | Operating range |
| Overpressure Safety | 130% of max range | Burst pressure safety margin |
| IP Rating | IP54, IP65 available | Dust & water resistant |
Key Features & Benefits
Flexible Mounting Options
Panel mount for control rooms or direct mount for field installations with multiple connection orientations.
Dry & Liquid-Filled Options
Choose dry gauges for standard applications or liquid-filled for vibration/pulsation damping.
EN 837 Compliance
Manufactured according to European standard EN 837 for pressure gauge design and accuracy.
Vibration-Resistant Design
Robust construction with liquid filling option to withstand harsh industrial environments.
Multiple Size Options
Available in standard dial sizes from 63mm to 160mm to suit different visibility requirements.
Customizable Dials
Custom scales, units, colors, and company logos available for specific application needs.
Industrial Applications
Industrial pressure gauges are essential for monitoring and control across multiple industries requiring reliable pressure indication.
Hydraulic Systems
Mobile equipment, presses, lifts, and hydraulic power units requiring accurate pressure monitoring.
Wellhead Control Panels
Oil & gas wellhead monitoring, Christmas tree pressure indication, and production control.
Instrumentation Lines
Process instrumentation, pilot lines, and control systems requiring local pressure indication.
Compressed Air Systems
Air compressors, pneumatic tools, and air distribution networks for pressure verification.
Chemical Processing
Reactor vessels, storage tanks, and process lines for safe operation monitoring.
Water & Wastewater
Pump discharge, filter systems, and treatment processes requiring pressure monitoring.
Technical Documentation
Download detailed specifications, certificates, and installation guides.
Product Data Sheet
Complete technical specifications and ordering information
EN 837 Compliance Certificate
Standards compliance and quality certification
Installation & Maintenance Guide
Mounting, commissioning, and maintenance procedures
Dimensional Drawings
2D & 3D CAD files for integration into your designs
